AEROSPEC AS-AV-74 Transponder/ADS-B/DME Antenna (AV-74, CI-105)

AEROSPEC AS-AV-74 Transponder/ADS-B/DME Antenna (AV-74, CI-105)

5.0 2 reviews

AEROSPEC AS-AV-74 is a broadband blade antenna for transponder, ADS-B and DME, 960–1220 MHz, with a female BNC connector and two-stud mounting.

View full details →
Transponder, ADS-B and DME
960–1220 MHz
Female BNC, VSWR ≤ 1.5:1
50 Ω, BNC
Power capacity
2.5 kW peak
Height 3.2–3.4 in
8.5 cm
All specifications →
SKU
AS-AV-74
Cert
CoC
Condition
New
In stockShips within 1 business day
3.334,07 CZK incl. VAT
2.755,43 Kč excl. VAT
  • Certified parts with full documentation
  • DHL delivery to 50+ countries
  • Expert product support
Have a question about this product? Chat with us
Description Specs & Parameters FAQ Shipping & Returns Reviews (2)

AEROSPEC AS-AV-74 Transponder/ADS-B/DME Antenna

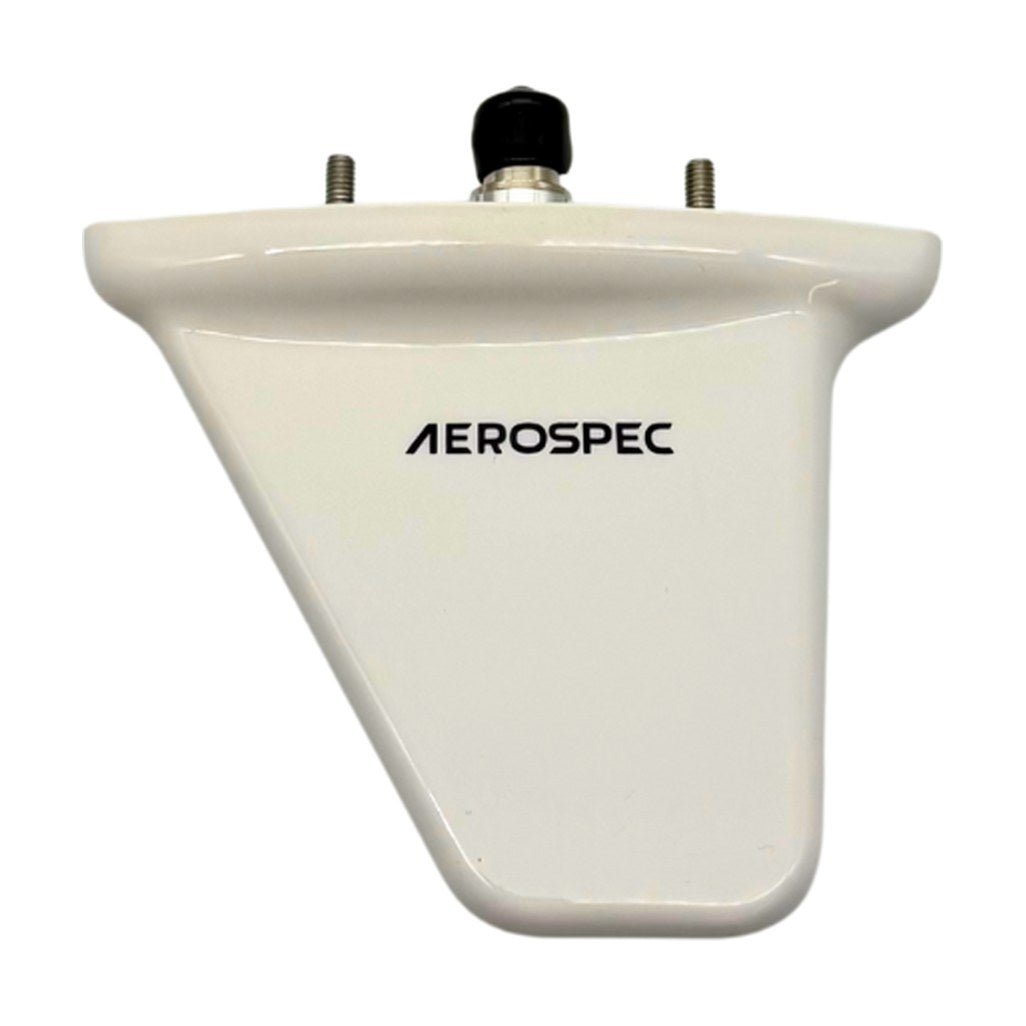

AEROSPEC AS-AV-74 is a broadband blade antenna for transponder, ADS-B and DME in the 960–1220 MHz band, with a female BNC connector, a white ASA housing and standard two-stud mounting. It has a power capacity of 2.5 kW peak and a VSWR of 1.5:1 at most across the band. It stands about 8.5 cm (3.2–3.4 in) high.

  • Broadband blade antenna for transponder, ADS-B and DME, 960–1220 MHz.

  • Female BNC connector and 50 Ω nominal impedance.

  • VSWR of 1.5:1 at most across the band, 1.3:1 at most at 1030–1090 MHz.

  • Power capacity of 2.5 kW peak.

  • Height about 8.5 cm (3.2–3.4 in), standard two-stud mounting.

  • White ASA housing, rated for up to 350 mph (304 kt) and 50 000 ft.

Housing, studs and connector

Housing, studs and connector

The housing is white ASA polymer, and the antenna uses the standard two-stud mounting with a female BNC connector.

The antenna is rated for speeds up to 350 mph (304 kt) and altitudes up to 50 000 ft.

Alternative to the RAMI AV-74 and Comant CI-105

AS-AV-74 matches the RAMI AV-74 in band (960–1220 MHz), impedance (50 Ω), VSWR (1.5:1 maximum), connector (female BNC), power capacity (2.5 kW peak) and two-stud mounting. RAMI built the AV-74 to replace the Comant CI-105, a transponder and DME antenna for the same band.

The stud length of the antenna being replaced needs to be checked before ordering.

Installation in certified aircraft

In an aircraft with an EASA type certificate, installation follows the EASA route: an approved modification and a Certificate of Release to Service. The installer needs to confirm that the antenna is acceptable for the aircraft and the transponder, ADS-B or DME unit before ordering.
