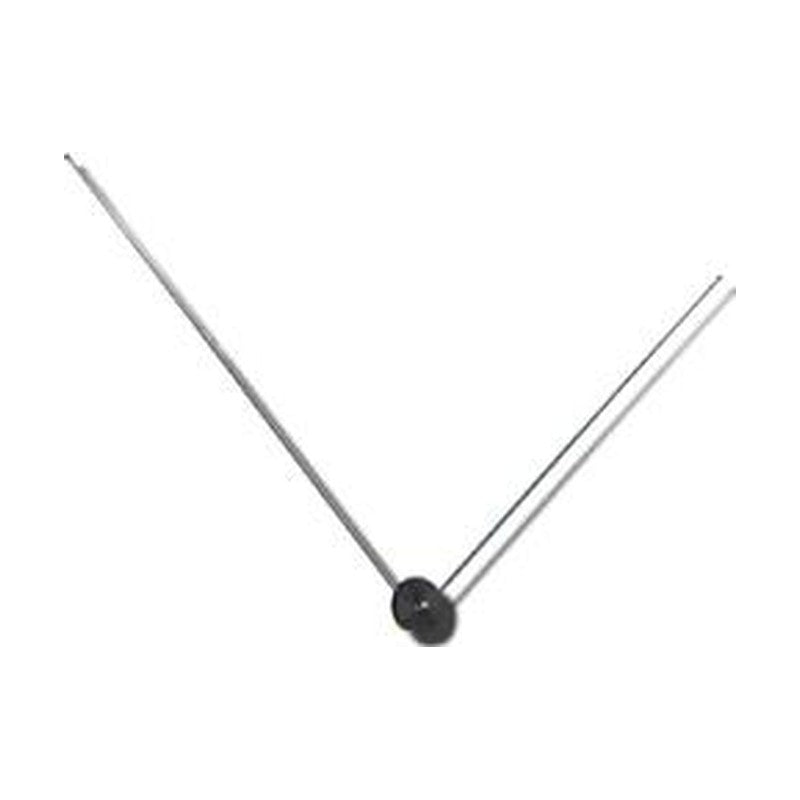

Comant CI-158C VOR/LOC/GS V-Dipole Antenna

Name: Comant CI-158C VOR/LOC/GS V-Dipole Antenna
Brand: Comant
SKU: CI-158C
Price: 14232.02 CZK
Availability: InStock

No reviews

Comant VOR/LOC/GS V-dipole antenna with detachable elements — Part number CI-158C.

View full details →

SKU: CI-158C
Cert: FAA
Condition: New

AvailableUsually ships within 3 weeks

14.232,02 CZK incl. VAT

11.762,00 Kč excl. VAT

Certified parts with full documentation
DHL delivery to 50+ countries
Expert product support

Have a question about this product? Chat with us

Comant CI-158C

Comant VOR/LOC/GS V-dipole antenna with detachable elements — Part number CI-158C.

Highlights

Comant VOR/LOC/GS V-dipole antenna with detachable elements
Exact identity: Comant CI-158C
Part number: CI-158C
VOR/LOC 108–118 MHz and glideslope 329–335 MHz; receive-only navigation component.

Exact identity

Comant CI-158C — CI-158C.

Purpose and selection

Comant VOR/LOC/GS V-dipole antenna with detachable elements

Compatibility and installation

Verify the exact part number, aircraft or equipment eligibility, approved installation data, connector and required interfaces before ordering.

Technical specifications

Part number	CI-158C	Dimensions	H 448 mm (17 5/8 in)
Manufacturer	Comant	Operating temperature	-55 – +85 °C
Frequency range	108–118 MHz / 329–335 MHz	Max operating altitude	50 000 ft
VSWR	3.0:1	Max airspeed	250 kt
Impedance	50 Ω	TSO / ETSO	TSO-C34c / TSO-C38c / TSO-C40c
Polarization	Horizontal	Specification	RTCA DO-160 / DO-192 / DO-195 / DO-196
Connector	BNC	Mounting	Fuselage top
Weight	0.16 kg

Comant CI 158C Data Sheet Datasheet · Rev. 2008 · EN · 53 kB Open PDF

Manufacturer documents, provided for reference. Before installation or operation, make sure you have the current revision.

How long are the elements of the CI-158C, and what does the base need?

The antenna is 17 5/8 in (448 mm) high, and the two stainless-steel elements form a 90° V spanning up to 35.63 in (905 mm). The round base is 2.50 in (63.5 mm) in diameter and fastens with two screws through 0.201 in (5.1 mm) holes 1.875 in (47.6 mm) apart, with a 0.575 in (14.6 mm) hole for the BNC connector. It weighs 0.35 lb (0.16 kg).

Can the two detachable elements of the CI-158C be mounted separately?

No. The CI-158C is one V-dipole: both elements attach to the common base with its integral ferrite balun, and the whole antenna mounts on top of the vertical stabilizer. Comant gives the smaller shipping and storage carton as the reason the elements are detachable. The antenna is not approved for helicopter installations.
