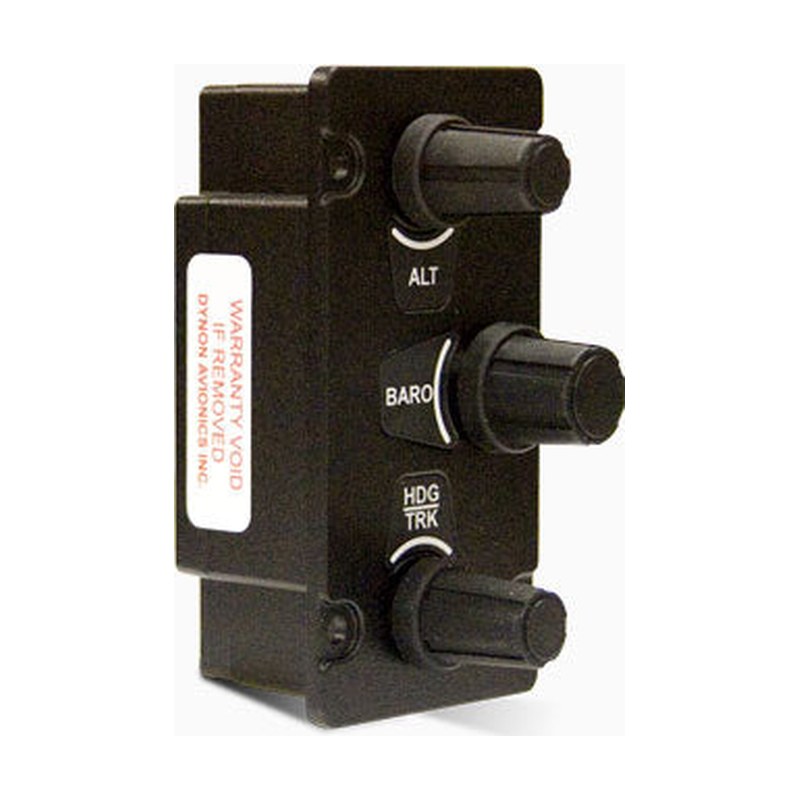

Dynon KNOB-PANEL/V
Dynon SV-KNOB-PANEL adds dedicated ALT, BARO and HDG/TRK knobs to a SkyView system in experimental aircraft, in a vertical (102136-000) or horizontal (102136-001) version. It connects to SkyView Network through two D9 connectors.
View full details →- SKU
- 102136-000
- Cert
- CoC
- Certified parts with full documentation
- DHL delivery to 50+ countries
- Expert product support
Dynon SV-KNOB-PANEL is the knob control panel for SkyView systems in experimental aircraft, supplied as 102136-000 (vertical) or 102136-001 (horizontal); both versions are physically, electrically and operationally identical. Dedicated knobs set the altitude bug, BARO and the heading/track bug, which are otherwise adjusted with the multifunction knobs on the SkyView display. Pressing a knob syncs the bug or setting, as on the display, and the display knobs can still be assigned to the same functions.
The panel connects to SkyView Network through two internally connected D9 connectors, so it can be installed as a pass-through device or daisy-chained to the next network device; up to two panels fit in one system. It is powered from SkyView Network (0.07 A at 12 V, 0.04 A at 24 V), its backlighting follows the display dimming, and it is added to the system through the SkyView Network setup. The panel measures 89.7 × 45.7 × 32.4 mm and weighs 0.18 kg.
Dynon states that SkyView is not intended for type certificated aircraft. Fit depends on the orientation and the SkyView system configuration.
