Dynon 102813-000 AOA/Pitot Probe Mounting Bracket

Name: Dynon 102813-000 AOA/Pitot Probe Mounting Bracket
Brand: Dynon
SKU: 102813-000
Price: 4813.26 CZK
Availability: InStock

No reviews

Aircraft-grade aluminium mounting bracket for standard-profile Dynon AOA/Pitot probes. Part number: 102813-000.

View full details →

SKU: 102813-000
Cert: CoC
Condition: New

Ships in 2 weeks Ordered from supplier before dispatch

4.813,26 CZK incl. VAT

3.977,90 Kč excl. VAT

Certified parts with full documentation
DHL delivery to 50+ countries
Expert product support

Aircraft Eligibility

Eligible Aircraft
- Van's RV-7
- Van's RV-8
- Van's RV-9
- Van's RV-10

Verify compatibility with your specific aircraft type and serial number. Contact us if you need assistance with part number cross-referencing.

Have a question about this product? Chat with us

Dynon AOA/Pitot mounting bracket

Aircraft-grade aluminium mounting bracket for standard-profile Dynon AOA/Pitot probes. Part number: 102813-000.

Highlights

Aircraft-grade aluminium mounting bracket for standard-profile Dynon AOA/Pitot probes.
Exact identity: Dynon AOA/Pitot mounting bracket
Part number: 102813-000
AN5812 mounting profile
small support bracket and cut-out template included
designed for RV-7/8/9/10; other aircraft may require modification

Exact identity

Dynon AOA/Pitot mounting bracket — Part number 102813-000.

Purpose and selection

Aircraft-grade aluminium mounting bracket for standard-profile Dynon AOA/Pitot probes.

Compatibility and installation

Verify the exact part number, parent equipment, installation eligibility, connector and required interfaces against current approved data before ordering.

Technical specifications

Part number	102813-000	Decision specifications 2	small support bracket and cut-out template included
Exact identity	Dynon AOA/Pitot mounting bracket	Decision specifications 3	designed for RV-7/8/9/10; other aircraft may require modification
Decision specifications 1	AN5812 mounting profile

AOA/Pitot Probe and Heated AOA/Pitot Probe Installation Guide Installation manual · Rev. G · EN · 1.6 MB Open PDF

Manufacturer documents, provided for reference. Before installation or operation, make sure you have the current revision.

What is the bracket made of?

Aircraft-grade aluminium, welded: the mast passes through a slot in a rectangular plate and is welded in place. It has a gold chem-film (Alodine) coating against corrosion that is ready for paint; for a polished finish, the coating comes off with aluminium polishing compound. It weighs 0.30 lb (0.14 kg).

Which pitot probes fit this bracket?

Dynon's unheated and heated AOA/pitot probes, P/N 100141-000 and 100667-000. The mast follows the standard AN5812 mounting profile, which Dynon notes is used by most pitot tubes, so a probe from another maker fits when it is built for an AN5812 mast.

What is in the kit, and what is the small angle piece for?

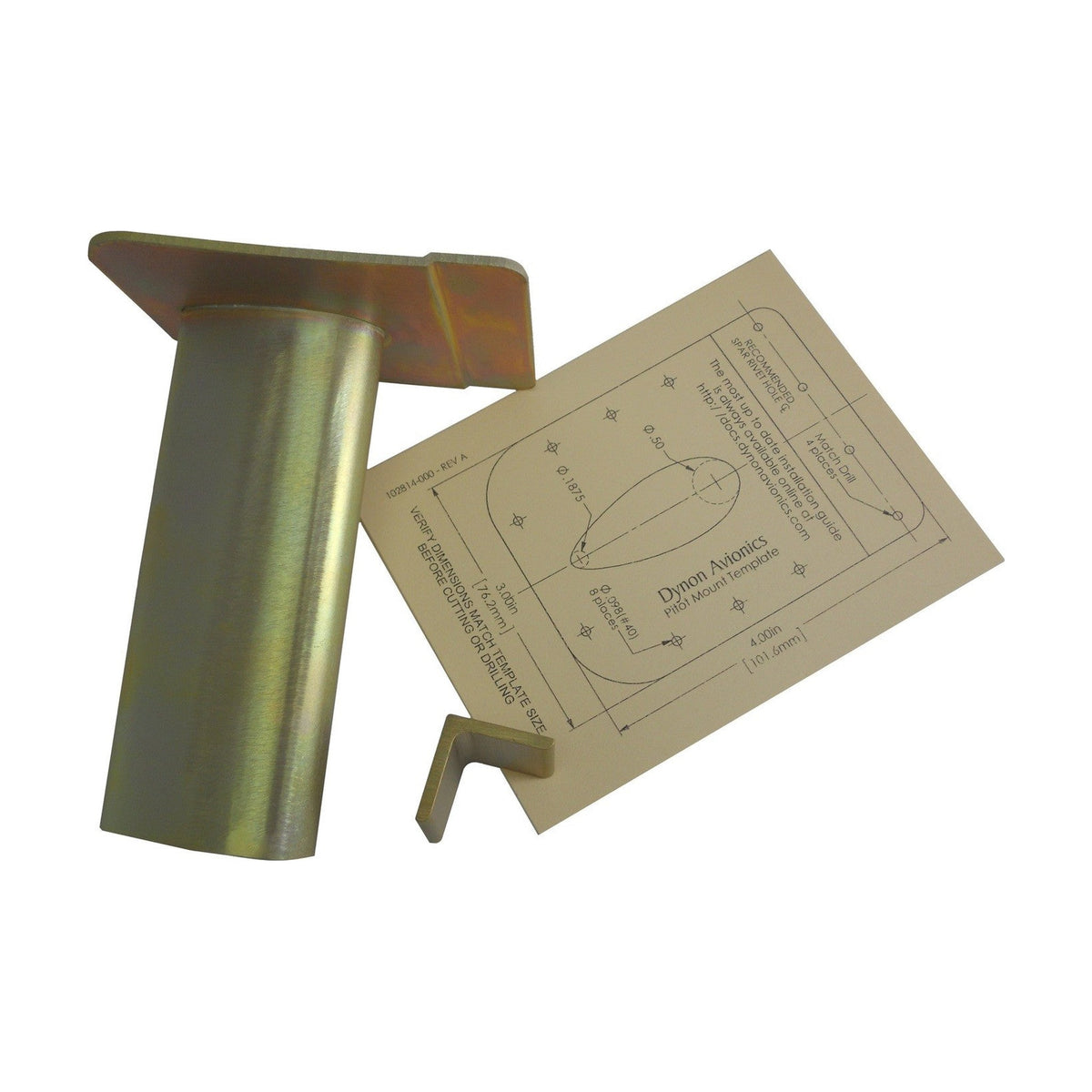

The welded pitot mast plate, a cutting template for the skin opening and rivet holes, and a 1 x 1 in angle bracket. The angle bracket ties the mast plate to the adjacent wing rib; Dynon describes it as essential for a secure mount under flight loads, so it cannot be left out. The installation steps are in Dynon's AOA/pitot probe installation guide.

Is the bracket suitable for aircraft other than the RV-7 to RV-10, such as an RV-14?

Dynon designed it and its cutting template for the RV-7, RV-8, RV-9 and RV-10 and gives no specific RV-14 instructions. In other aircraft it can be used, but Dynon warns that it may need modification, possibly significant; the builder decides the hole positions and the attachment to the rib. Any other AN5812-type under-wing mast is an alternative.

Orders, VAT, shipping → FAQ.

Packaging: All certified parts ship with proper documentation (8130-3, COC, or equivalent) in protective packaging.

Traceability: Full back-to-birth traceability available. Dual release (FAA/EASA) documentation included where applicable.

Shelf-life items: Items with limited shelf life are shipped with current certification and maximum remaining life.
