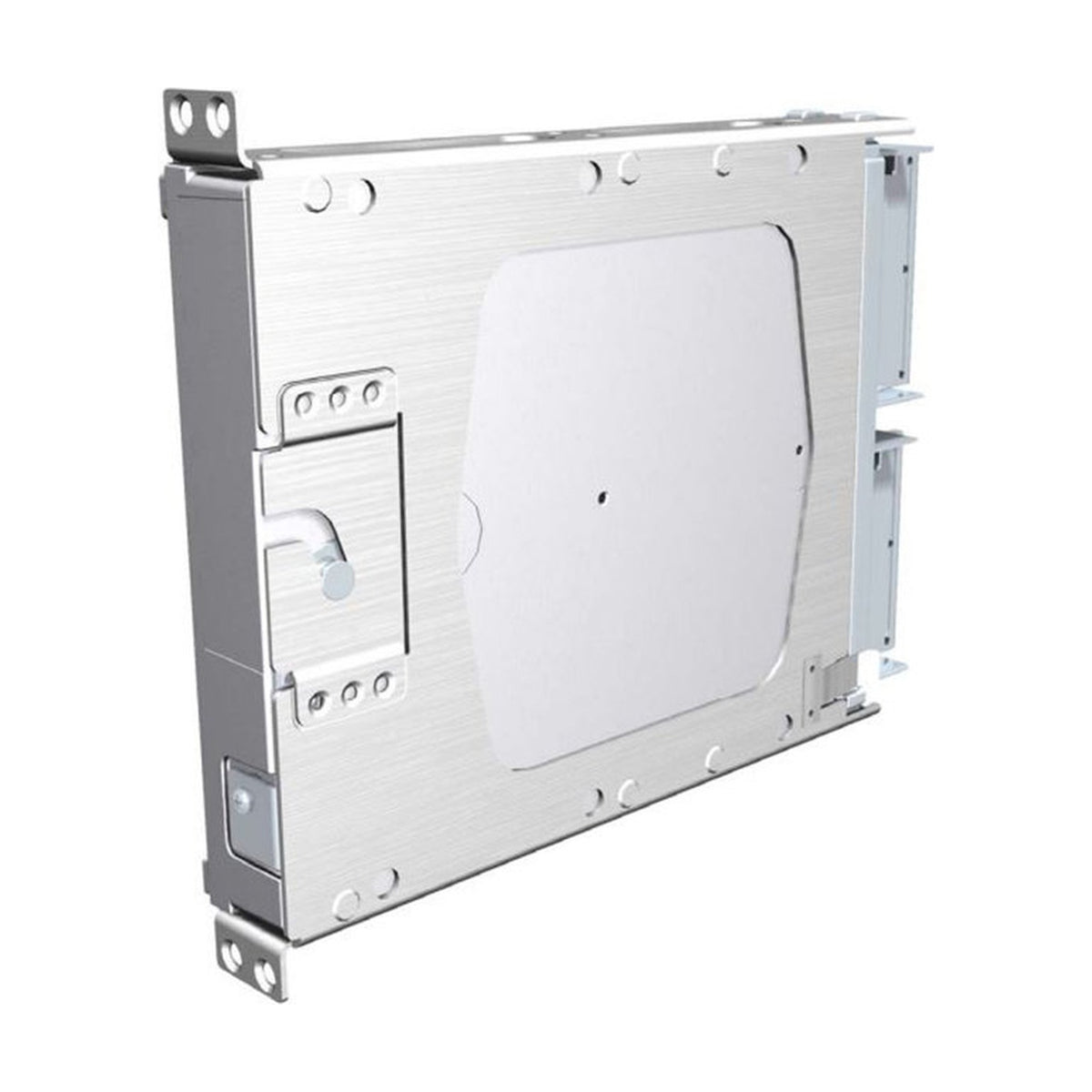

Garmin GEA 71B

Images may differ from actual product. Connectors and accessories sold separately unless specified.

Garmin

Garmin GEA 71B Engine and Airframe Interface Unit

No reviews

Garmin GEA 71B is an engine and airframe interface unit that sends sensor data over RS-485 to the GIA units of a Garmin integrated cockpit. P/N 010-01405-00 is the standard version, 010-01405-02 and -05 are Enhanced versions.

View full details →

What do Advanced Exchange, Future Exchange and Repair mean? Read the guide →

Choose your version

P/N010-01405-00
Condition
Ships in 2 weeks Ordered from supplier before dispatch
99.446,05 CZK incl. VAT
82.186,82 Kč excl. VAT

Garmin Installation Policy

Garmin Installation Policy applies to new units on certified aircraft. AIR TEAM quotes the certified install. The unit is not sold carton-only for certified aircraft.

Request installation quoteChat with us
  • Certified parts with full documentation
  • DHL delivery to 50+ countries
Have a question about this product? Chat with us
Description Specs & Parameters Exchange & Repair Reviews (0)

Garmin GEA 71B is an engine and airframe interface unit for Garmin integrated avionics. It reads engine and airframe sensors, drives annunciator outputs and sends the data over RS-485 to the GIA integrated avionics units. In a G1000 NXi the MFD shows the engine instruments and the PFDs show the airframe alerts; the engine data is also shown in reversionary mode.

The unit has 18 analog inputs, engine temperature inputs, transducer excitation outputs, discrete and digital inputs, nine annunciator outputs and two differential counter inputs. A thermocouple and a configuration module temperature sensor in the backshell measure the connector junction temperature. Configuration is done through the cockpit displays. In the G500/G600 TXi, a GEA 71B Enhanced provides the engine indication (EIS) data.

P/N 010-01405-00 is the standard version (unit 011-03682-00); 010-01405-02 and 010-01405-05 are Enhanced versions supplied as unit only. The GEA 71B is installed as part of the approved Garmin system of the aircraft; after replacement, software and configuration are loaded and the aircraft is released to service. Fit depends on the P/N of the installed unit, the avionics system and the aircraft type.
