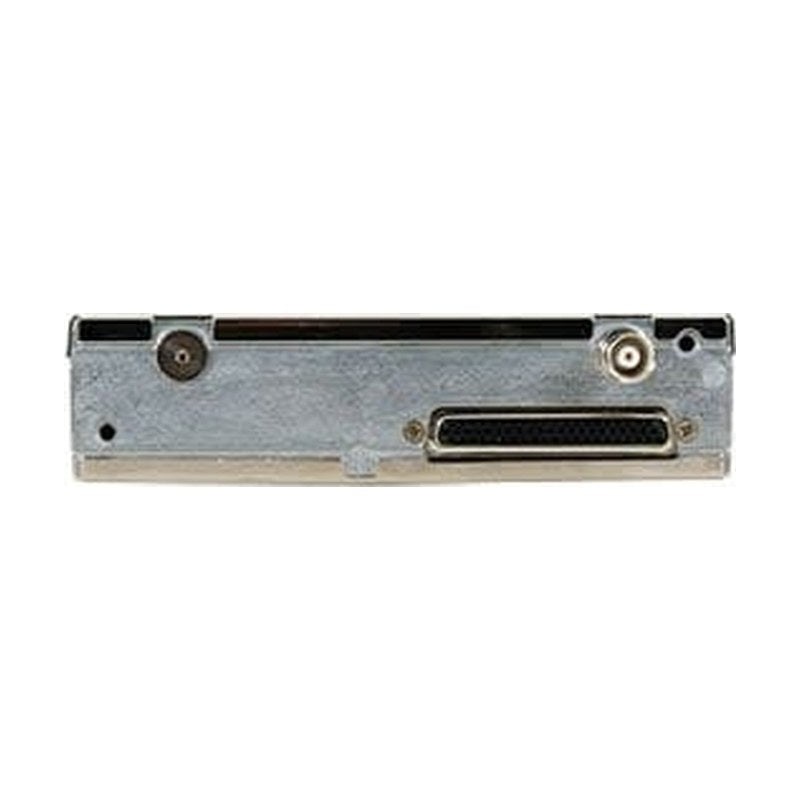

Garmin GTX 23 ES Mode S Transponder

No reviews

Garmin GTX 23 ES (011-02803-02) is a remote-mount Mode S transponder (250 W) with 1090ES ADS-B Out, controlled from a G3X or G3X Touch display and not from a GTN. Offered serviceable/overhauled or as a repair.

View full details →

What do Advanced Exchange, Future Exchange and Repair mean? Read the guide →

Choose your version

P/N
Condition
On request

Price on request

Request for Quote
  • Certified parts with full documentation
  • DHL delivery to 50+ countries
Have a question about this product? Chat with us
Description Specs & Parameters Exchange & Repair Reviews (0)

Garmin GTX 23 ES is a remote-mount Mode S Level 2 transponder with 1090 MHz extended squitter (ADS-B Out) and no controls on the unit; Garmin unit P/N 011-02803-02. It transmits 250 W nominal (125 W minimum) and runs on 14 or 28 V DC. Garmin introduced it for experimental and light sport aircraft with the G3X display.

In a G3X or G3X Touch system the GDU displays control the GTX 23 ES and the ADAHRS supplies pressure altitude; control from a GTN 6XX/7XX is not supported. ADS-B Out needs an external GPS position source over RS-232, such as a GNS 400W/500W WAAS unit or a GTN 6XX/7XX. Software 7.01 and later meets ADS-B Version 2 (TSO-C166b, DO-260B), and TIS-A traffic is passed to the G3X system.

Approvals depend on the software: v6.20 is listed under ETSO-2C112b Class 1 and ETSO-C166a, v8.xx under TSO-C112d Class 1 Level 2ens and TSO-C166b. 011-02803-02 is offered as a serviceable/overhauled unit and as a repair of the customer’s unit; warranty and release document are stated in the quote. A certified aircraft needs an approved modification and a Certificate of Release to Service. Fit depends on the aircraft type, the controlling display and the GPS position source; a repair quote needs the unit S/N.
