Garmin

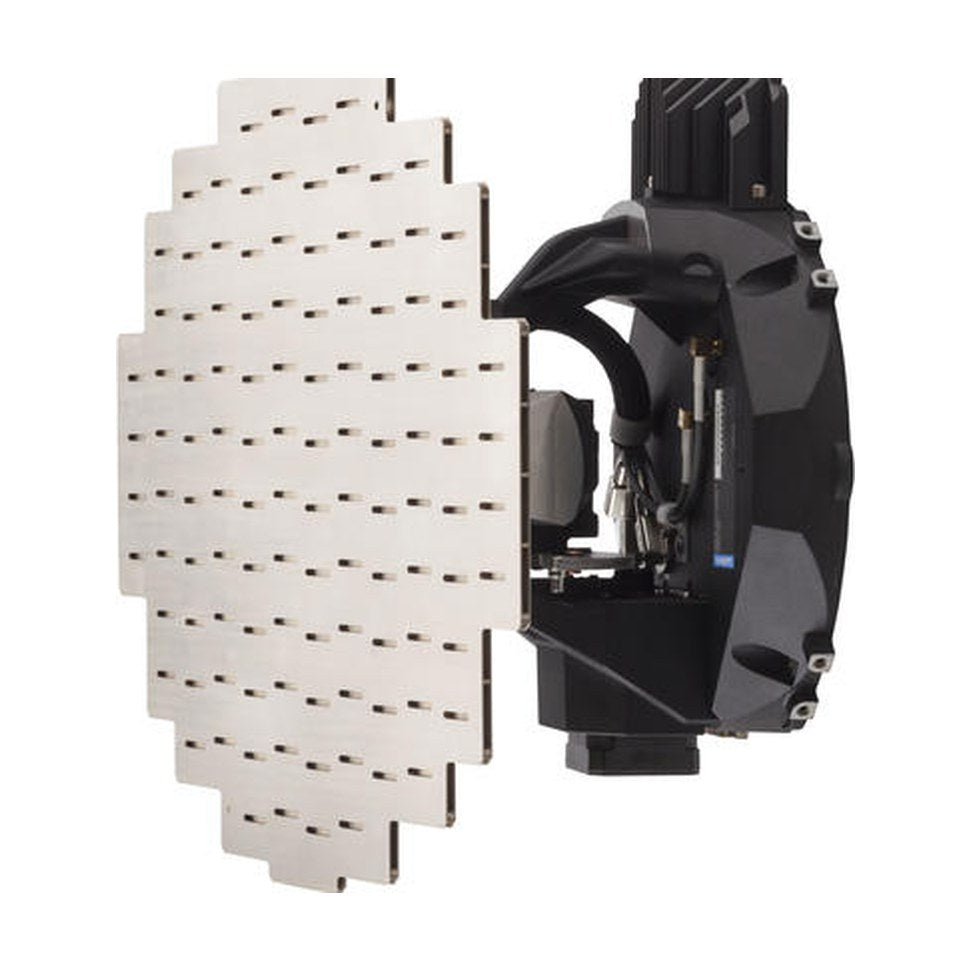

Garmin GWX 75R Weather Radar

Name: Garmin GWX 75R Weather Radar
Brand: Garmin
SKU: 010-01589-20
Price: 587536.87 CZK
Availability: InStock

No reviews

Garmin GWX 75R is a solid-state weather radar from the GWX 75 line, with a 10-inch (010-01589-20) or 12-inch (010-01589-21) antenna. The image is shown on compatible Garmin flight decks, GTN navigators and TXi displays.

View full details →

What do Advanced Exchange, Future Exchange and Repair mean? Read the guide →

Choose your version

P/N010-01589-20

010-01589-20 010-01589-21 010-01589-27

Condition

New

Ships in 2 weeks Ordered from supplier before dispatch

587.536,87 CZK incl. VAT

485.567,66 Kč excl. VAT

Garmin Installation Policy

Garmin Installation Policy applies to new units on certified aircraft. AIR TEAM quotes the certified install. The unit is not sold carton-only for certified aircraft.

Request installation quote Chat with us

Certified parts with full documentation
DHL delivery to 50+ countries

Have a question about this product? Chat with us

Garmin GWX 75R is a solid-state weather radar from the Garmin GWX 75 line; Garmin lists it as a separate model next to GWX 75 and GWX 75H. P/N 010-01589-20 comes with a 10-inch antenna and P/N 010-01589-21 with a 12-inch antenna. The configuration of P/N 010-01589-27 is confirmed with the quote.

The radar image is shown on a compatible Garmin display: select Garmin integrated flight decks, GTN series navigators and TXi flight displays. Turbulence detection and ground clutter suppression are optional features.

A certified aircraft needs an approved modification for the radar installation and a Certificate of Release to Service after installation. Fit depends on the aircraft type, the installed Garmin display and the antenna size.

Technical specifications

Part number	010-01589-20 / 010-01589-21 / 010-01589-27	Manufacturer	Garmin

Advanced Exchange ships a serviceable unit before the core is returned. Future Exchange begins after receipt and evaluation of the core and does not require a deposit. Repair retains the original serial number and starts with inspection and quotation.

Advanced Exchange

What happens: You receive a serviceable unit first. Your core goes back afterward.
Pay now: Full SV price plus core deposit.
Core: Return within 15 calendar days. Repairable (not BER) — deposit refunded. Missing or BER — deposit stays.
Time: Typically 2–3 weeks. Warranty 3 months. Released on EASA Form 1 or FAA 8130-3.

Future Exchange

What happens: You send the core first. After we confirm it is repairable, we ship the serviceable replacement.
Pay now: Net exchange price only. No deposit.
Core: Must be repairable (not BER). Same or superseded P/N, data plate on.
Time: Typically 3–4 weeks. Warranty 3 months. Released on EASA Form 1 or FAA 8130-3.

Repair

Serial: Yours stays. No swap unit — that is Exchange.
Shop: We inspect, quote, then repair. Accept the repair quote and the evaluation fee already paid is deducted. Decline or BER — unit returns as-is; evaluation fee stays.
Time: Typically 2–6 weeks after you approve the quote, parts depending. Warranty 3 months. Released on EASA Form 1 or FAA 8130-3.

Return the core in equivalent packaging, with removal data and a non-incident statement where you have them. Late, incomplete, or rejected-core terms are on the quote.

Recommended accessories

Garmin 011-02545-00 Mounting Adapter Kit for GWX 70/75

Ships in 2 weeks

Regular price 7.805,44 CZK incl. VAT

6.450,78 Kč excl. VAT

Can't find the right part?

Our parts specialists will find hard-to-get components, check that a part suits your aircraft and arrange exchange units.

Hard-to-find and obsolete parts
A check that the part fits your aircraft, with the right paperwork
Exchange and overhauled units

Chat with us

Chat answers straight away, day or night. A parts specialist replies to written requests within 1 business day.
