UMA 8-310-20

UMA 8-310-20 Vertical Speed Indicator

No reviews

UMA 8-310-20 is a 3⅛ in (79 mm) vertical speed indicator, ±2000 ft/min, dial label “Vertical Speed”, connected to the static line. It is a non-TSO instrument from UMA’s range for experimental aircraft.

View full details →
dial “Vertical Speed”
±2000 ft/min
79 mm panel instrument
3⅛ in
8.8 oz
250 g
optional EL lighting
3 colours
All specifications →
SKU
8-310-20
Cert
CoC
Condition
New
Ships in 4 weeks Ordered from supplier before dispatch
8.893,85 CZK incl. VAT
7.350,29 Kč excl. VAT
  • Certified parts with full documentation
  • DHL delivery to 50+ countries
  • Expert product support
Have a question about this product? Chat with us
Description Specs & Parameters Downloads FAQ Shipping & Returns Reviews (0)

UMA 8-310-20 Vertical Speed Indicator

UMA 8-310-20 is a 3⅛ in (79 mm) vertical speed indicator with a range of ±2000 ft/min and the dial name “Vertical Speed”. It weighs 8.8 oz (about 250 g) and connects to the aircraft static line. It belongs to UMA’s non-TSO range of flight instruments for experimental aircraft.

  • Range of ±2000 ft/min, dial name “Vertical Speed”.

  • Panel instrument in the 3⅛ in (79 mm) size.

  • Weight 8.8 oz (about 250 g).

  • Connects to the static line; UMA’s installation instructions add a screen mesh filter.

  • UMA offers internal electroluminescent lighting in three colours as an option; it needs an external DC-AC inverter.

  • Non-TSO instrument from UMA’s range for experimental aircraft; UMA’s TSO-C8e indicators have separate T8 part numbers.

Dial and range

Dial and range

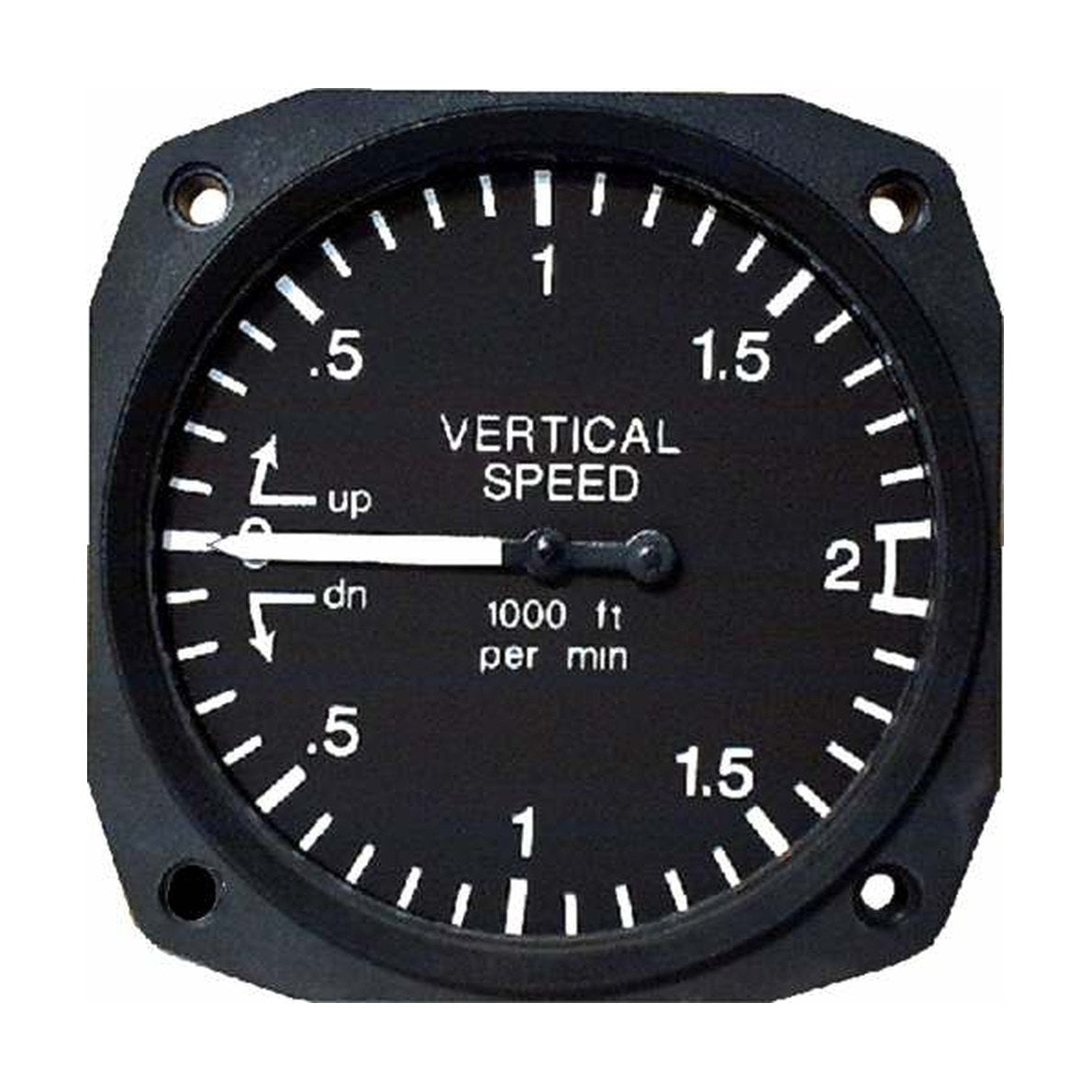

The 8-310-20 reads ±2000 ft/min. The dial is marked “Vertical Speed” and “1000 ft per min”, with a scale from 0 to 2 in each direction and arrows for up and down.

UMA lists the same range with other dial names: “Climb” as 8-310-22, “Rate of Change” as 8-310-23 and “Cabin Climb” as 8-310-24.

Other ranges and metric version

UMA lists the 3⅛ in series with ranges of ±3000 ft/min (8-310-30), ±4000 ft/min (8-310-40) and ±6000 ft/min (8-310-60). Each range comes in four dial names, the same as for ±2000 ft/min.

The metric version is 8-311-10 with a range of ±10 m/s. The 2¼ in size is a separate series, 8-210.

Installation and static connection

UMA’s installation instructions for vertical speed indicators call for mounting the instrument in the panel, connecting its port to the static line and adding a screen mesh filter.

Lighting and TSO counterpart

UMA lists internal electroluminescent lighting for its vertical speed indicators in blue-white, aviation green and red. An external DC-AC inverter is required.

The 8-310-20 is a non-TSO instrument from UMA’s range for experimental aircraft. UMA lists its TSO-C8e vertical speed indicators separately under P/Ns with the T8 prefix, such as T8-310-20. Fit depends on the aircraft type.
