Whelen 7155401

5.0 2 reviews

Whelen 71554 series is a white LED tail position light, TSO-C30c Type III, in 14 V and 28 V versions with horizontal or vertical mounting holes, 64 g. Whelen lists EASA STC 10055068 (fixed wing) and 10056206 (rotorcraft).

View full details →
SKU
01-0771554-01
Cert
FAA

Choose your version

Version28V, Horizontal
Ships in 3 weeks Ordered from supplier before dispatch
8.515,02 CZK incl. VAT
7.037,21 Kč excl. VAT
  • Certified parts with full documentation
  • DHL delivery to 50+ countries
  • Expert product support
Aircraft Eligibility
  • Eligible Aircraft
    • Aero Commander 100: 100-180, 100A
    • Aero Commander 500: 500, 500-A, 500-B, 500-S, 500-U
    • Aero Commander 520: 520
    • Aero Commander 560: 560, 560-A, 560-E, 560-F
    • Aero Commander 680: 680, 680-E, 680-F, 680-FL, 680-T, 680-V, 680-W
    • Aero Commander 681: 681
    • Aero Commander 685: 685
    • Aero Commander 690: 690
    • Aero Commander 720: 720
    • Beechcraft 100: 100
    • Beechcraft 19: 19A, A23-19, B19, M19A
    • Beechcraft 23: 23, A23, A23A, B23, C23
    • Beechcraft 24: A23-24, A24, A24R
    • Beechcraft 33: 35-33, 35-A33, 35-B33, 35-C33, 35-C33A, E33, E33A, E33C, F33, F33A, F33C
    • Beechcraft 35: 35, 35R, A35, B35, C35, D35, E35, F35, G35, H35, J35, K35, M35, N35, P35, S35, V35, V35A, V35B
    • Beechcraft 36: 36, A36, A36TC, B36TC, G36
    • Beechcraft 50: 50, B50, C50, D50, D50A, D50B, D50C, D50E, E50, F50, G50, H50, J50
    • Beechcraft 55: 95-55, 95-A55, 95-B55, 95-B55B, 95-C55, D55, D55A, E55, E55A
    • Beechcraft 56: 56TC, A56TC
    • Beechcraft 58: 58
    • Beechcraft 60: 60, A60
    • Beechcraft 65: 65, A65
    • Beechcraft 70: 70
    • Beechcraft 80: 65-80, 65-A80, 65-B80
    • Beechcraft 8200: A65-8200
    • Beechcraft 88: 65-88
    • Beechcraft 8800: 65-A80-8800
    • Beechcraft 90: 65-90, 65-A90, 65-A90-1, 65-A90-2, 65-A90-3, B90, C90
    • Beechcraft 95: 95, B95, B95A, D95A, E95
    • Beechcraft 99: 99, 99A
    • Bell 206: 206A, 206B, 206L, 206L-1, 206L-3, 206L-4
    • Bellanca 17: 17-30A, 17-31A, 17-31ATC
    • Britten-Norman BN-2: BN-2, BN-2A, BN-2A MK. III, BN-2A-2, BN-2A-6, BN-2A-8
    • Cessna 120: 120
    • Cessna 140: 140, 140A
    • Cessna 150: 150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150J, 150K, 150L, 150M, A-150L, A150K, A150M
    • Cessna 152: 152, A152
    • Cessna 170: 170, 170A, 170B
    • Cessna 172: 172, 172A, 172B, 172C, 172D, 172E, 172F, 172G, 172H, 172I, 172K, 172L, 172M, 172N, 172P, 172RG, P172D
    • Cessna 175: 175, 175A, 175B, 175C
    • Cessna 177: 177, 177A, 177B, 177RG
    • Cessna 180: 180, 180A, 180B, 180C, 180D, 180E, 180F, 180G, 180H, 180J, 180K
    • Cessna 182: 182, 182A, 182B, 182C, 182D, 182E, 182F, 182G, 182H, 182J, 182K, 182L, 182M, 182N, 182P, 182Q, 182R, R182, T182, TR182
    • Cessna 185: 185, 185A, 185B, 185C, 185D, 185E, A185E, A185F
    • Cessna 188: 188, 188A, 188B, A188, A188A, A188B, T188C
    • Cessna 190: 190
    • Cessna 195: 195, 195A, 195B
    • Cessna 206: 206, P206, P206A, P206B, P206C, P206D, P206E, TP206A, TP206B, TP206C, TP206D, TP206E, TU206A, TU206B, TU206C, TU206D, TU206E, TU206F, TU206G, U206, U206A, U206B, U206C, U206D, U206E, U206F, U206G
    • Cessna 207: 207, 207A, T207, T207A
    • Cessna 208: 208, 208B
    • Cessna 210: 210, 210-5, 210-5A, 210A, 210B, 210C, 210D, 210E, 210F, 210G, 210H, 210J, 210K, 210L, 210N, P210N, T210F, T210G, T210H, T210J, T210K, T210L, T210M, T210N
    • Cessna 310: 310, 310A, 310B, 310C, 310D, 310E, 310F, 310G, 310H, 310I, 310J, 310J-1, 310K, 310L, 310N, 310P, 310Q, E310J, T310P, T310Q
    • Cessna 320: 320, 320-1, 320A, 320B, 320C, 320D, 320E, 320F
    • Cessna 336: 336
    • Cessna 337: 337, 337A, 337B, 337C, 337D, 337E, 337F, T337D, T337E, T337F, T337G
    • Cessna 340: 340, 340A
    • Cessna 401: 401, 401A, 401B
    • Cessna 402: 402, 402A, 402B
    • Cessna 411: 411, 411A
    • Cessna 414: 414
    • Cessna 421: 421, 421A, 421B
    • Champion 7: 7EC, 7ECA, 7FC, 7GC, 7GCA, 7GCAA, 7GCB, 7GCBA, 7GCBC, 7HC, 7JC, 7KCAB
    • Grumman AA-1: AA-1, AA-1A
    • Grumman AA-5: AA-5
    • Grumman G-164: G-164, G-164A, G-164B, G-164B with 73in wing gap
    • Helio H-250: H-250
    • Helio H-295: H-295
    • Helio H-391: H-391, H-391B
    • Helio H-395: H-395
    • MD Helicopters 369: 369D
    • Mooney M20: M20B, M20C, M20D, M20E, M20F, M20G
    • Piper PA-11: PA-11
    • Piper PA-12: PA-12
    • Piper PA-14: PA-14
    • Piper PA-15: PA-15
    • Piper PA-16: PA-16, PA-16S
    • Piper PA-17: PA-17
    • Piper PA-18: PA-18, PA-18-105, PA-18-125, PA-18-135, PA-18-150, PA-18A, PA-18A-135, PA-18A-150, PA-18AS-125, PA-18AS-135, PA-18AS-150, PA-18S, PA-18S-105, PA-18S-125, PA-18S-135, PA-18S-150
    • Piper PA-19: PA-19, PA-19S
    • Piper PA-20: PA-20, PA-20-115, PA-20-135, PA-20S, PA-20S-115, PA-20S-135
    • Piper PA-22: PA-22, PA-22-108, PA-22-135, PA-22-150, PA-22-160, PA-22S-135, PA-22S-150, PA-22S-160
    • Piper PA-23: PA-23, PA-23-160, PA-23-235, PA-23-250
    • Piper PA-24: PA-24, PA-24-250, PA-24-260, PA-24-400
    • Piper PA-25: PA-25, PA-25-235, PA-25-260
    • Piper PA-28: PA-28-140, PA-28-150, PA-28-151, PA-28-160, PA-28-161, PA-28-180, PA-28-181, PA-28-201T, PA-28-235, PA-28-236, PA-28R-180, PA-28R-200, PA-28R-201, PA-28R-201T, PA-28RT-201, PA-28RT-201T, PA-28S-160, PA-28S-180
    • Piper PA-30: PA-30
    • Piper PA-31: PA-31, PA-31-300, PA-31-325, PA-31-350, PA-31P
    • Piper PA-32: PA-32-260, PA-32-300, PA-32S-300
    • Piper PA-39: PA-39
    • Piper PA-E23-250: PA-E23-250
    • Rockwell Commander 112: 112
    • Schweizer 269: 269A, 269A-1, 269B, 269C
    • Stinson 108: 108, 108-1, 108-2, 108-3, 108-5
    • de Havilland Canada DHC-2: DHC-2 Mk I, DHC-2 Mk II, DHC-2 Mk III
    • de Havilland Canada DHC-3: DHC-3
    • de Havilland Canada DHC-6: DHC-6-1, DHC-6-100, DHC-6-200, DHC-6-300

Verify compatibility with your specific aircraft type and serial number. Contact us if you need assistance with part number cross-referencing.

Have a question about this product? Chat with us
Description Specs & Parameters Downloads FAQ Shipping & Returns Reviews (2)

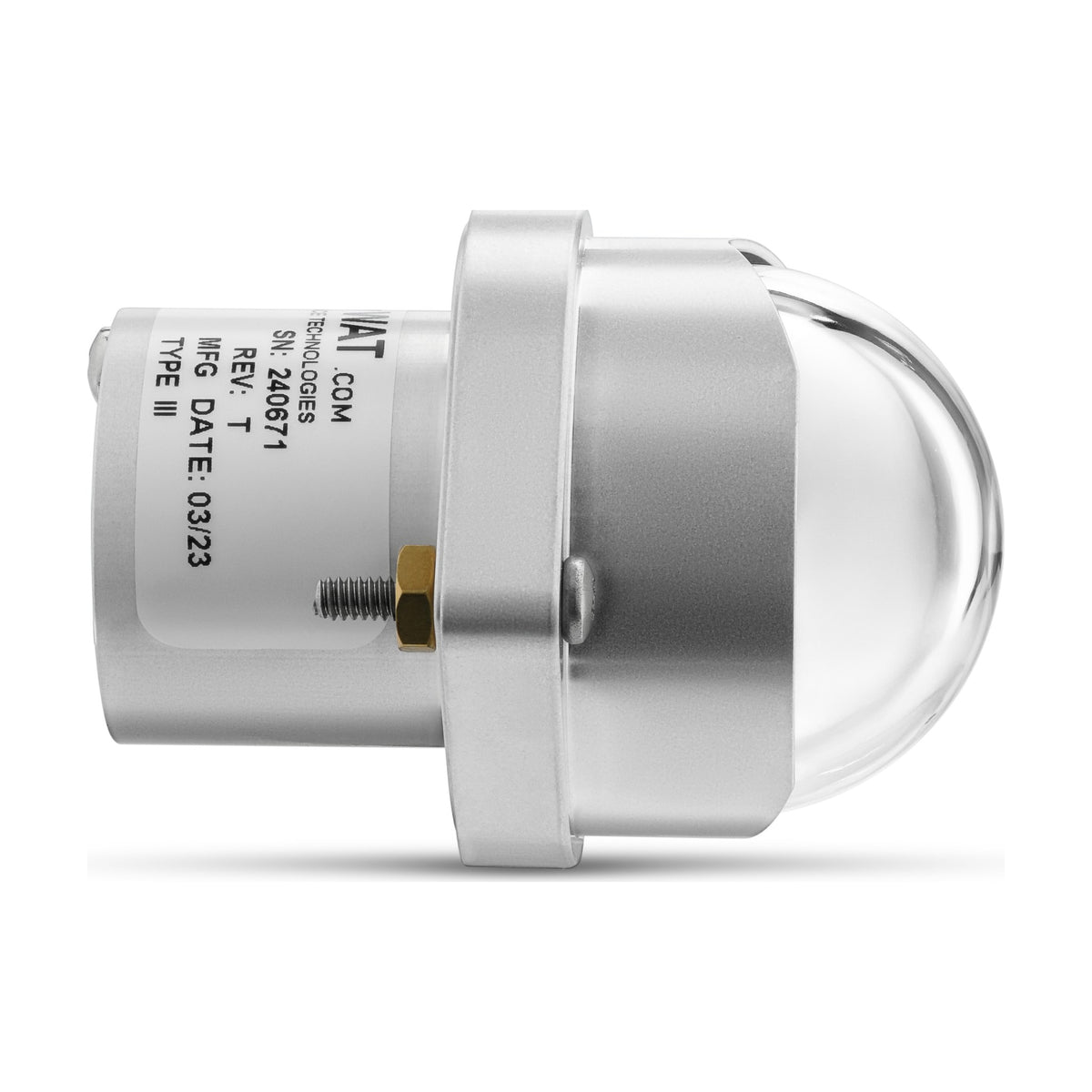

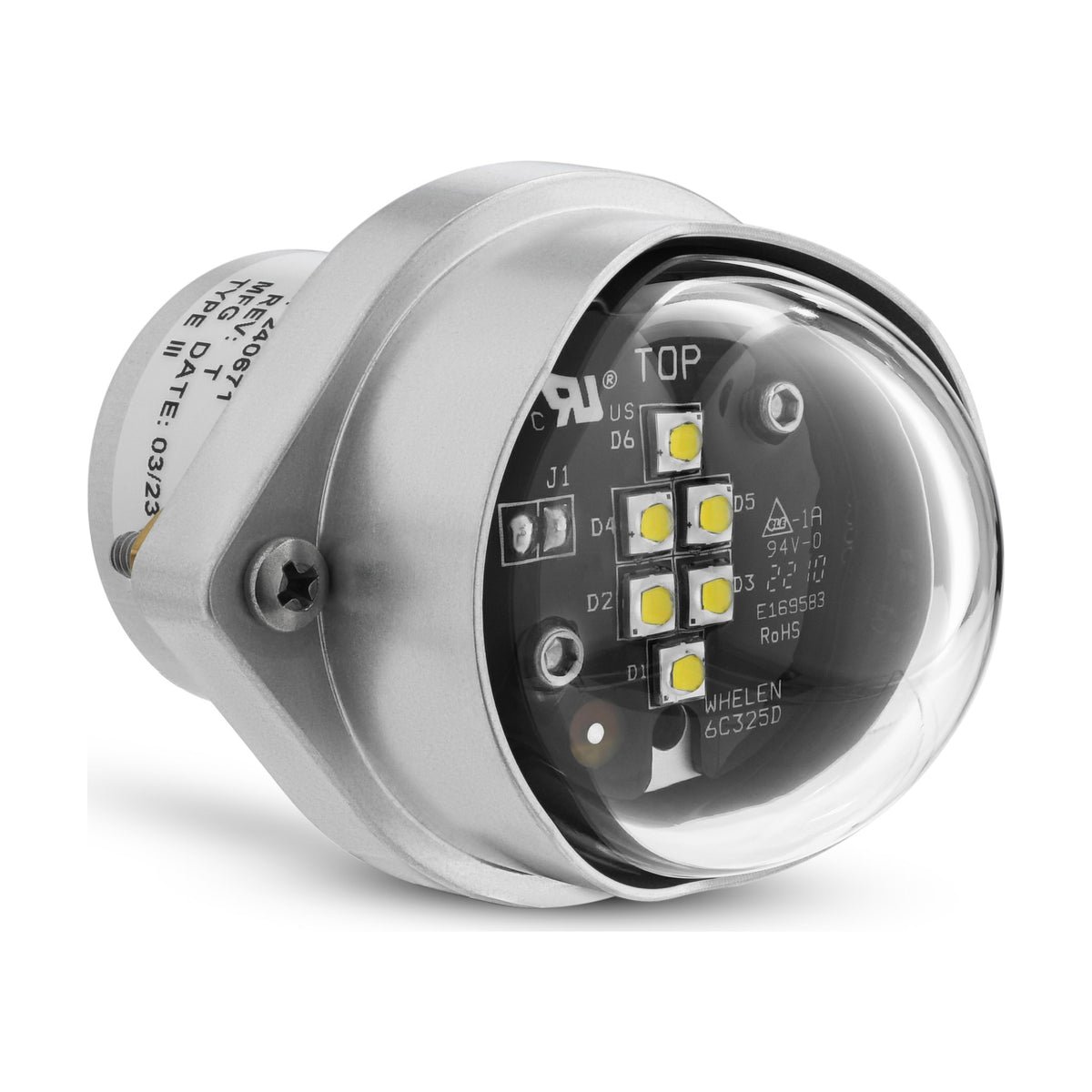

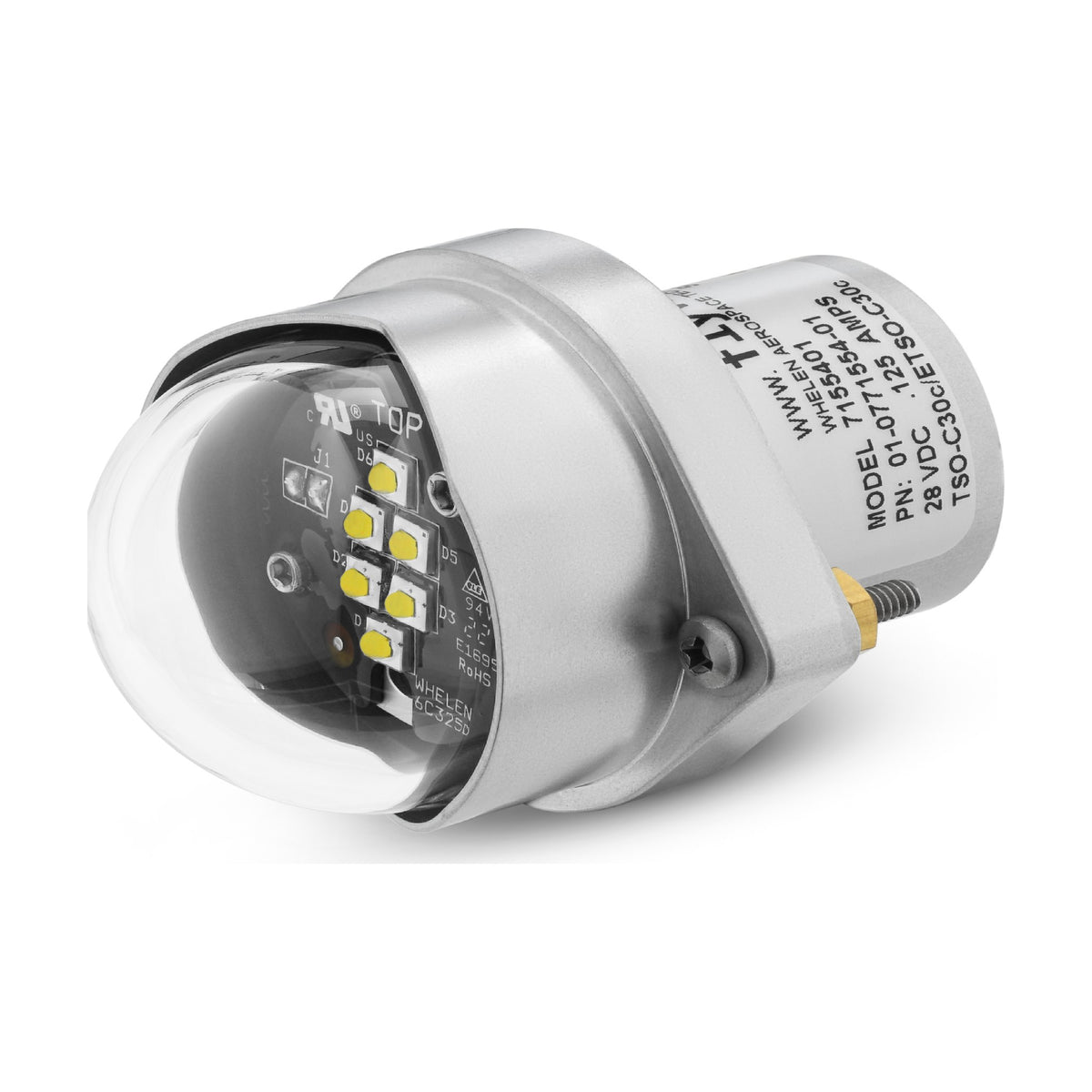

The Whelen 71554 series is an aviation white LED tail position light for 14 V or 28 V DC aircraft, approved to TSO-C30c Type III; Whelen also lists E-TSO approval. Six LEDs sit under a clear hard-coated polycarbonate lens. The light weighs 0.14 lb (64 g) and measures 35.6 × 40.4 × 52.6 mm (exposed height × width × length).

01-0771554-11 (7155411, horizontal) and 01-0771554-12 (7155412, vertical) are the 14 V versions: 11–15 V DC, 0.25 A, red +14 V and black ground leads. 01-0771554-01 (7155401, horizontal) and 01-0771554-02 (7155402, vertical) are the 28 V versions: 22–30 V DC, 0.125 A, white +28 V lead. Horizontal versions have the mounting holes at 9 and 3 o'clock, vertical versions at 12 and 6 o'clock. The light mounts as far aft as practicable on a thermally conductive surface. If any LED fails, the unit is repaired or replaced; Whelen specifies an annual inspection.

Whelen lists EASA STC 10055068 for fixed-wing aircraft; EASA STC 10056206 for rotorcraft covers P/N 01-0771554-( ) within its approved model list. A certified aircraft needs an approved modification and a Certificate of Release to Service. Fit depends on the aircraft type, the electrical system voltage and the mounting orientation.
