Garmin GMU 11 Magnetometer (Certified)

Name: Garmin GMU 11 Magnetometer (Certified)
Brand: Garmin
SKU: 010-01788-01
Price: 10823.57 CZK
Availability: InStock

No reviews

Garmin GMU 11 is a remote-mounted three-axis magnetometer that supplies magnetic heading to Garmin G5, GI 275 and G3X Touch systems in certified aircraft. P/N 010-01788-01 is the certified version; with the GI 275 it is limited to aircraft up to 6,000 lb.

View full details →

What do Advanced Exchange, Future Exchange and Repair mean? Read the guide →

Choose your version

P/N

010-01788-01

Condition

New

Ships in 2 weeks Ordered from supplier before dispatch

10.823,57 CZK incl. VAT

8.945,10 Kč excl. VAT

Certified parts with full documentation
DHL delivery to 50+ countries

Have a question about this product? Chat with us

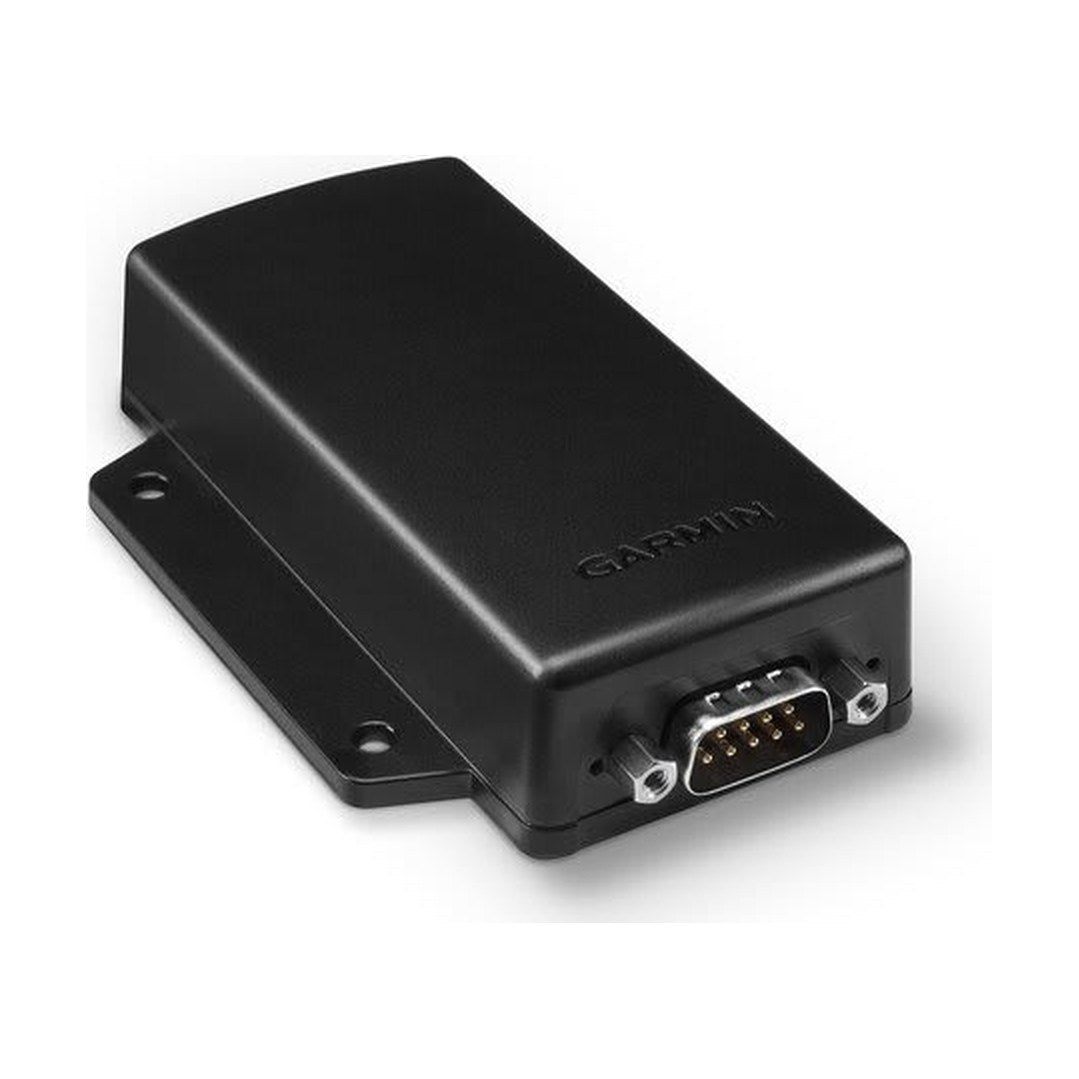

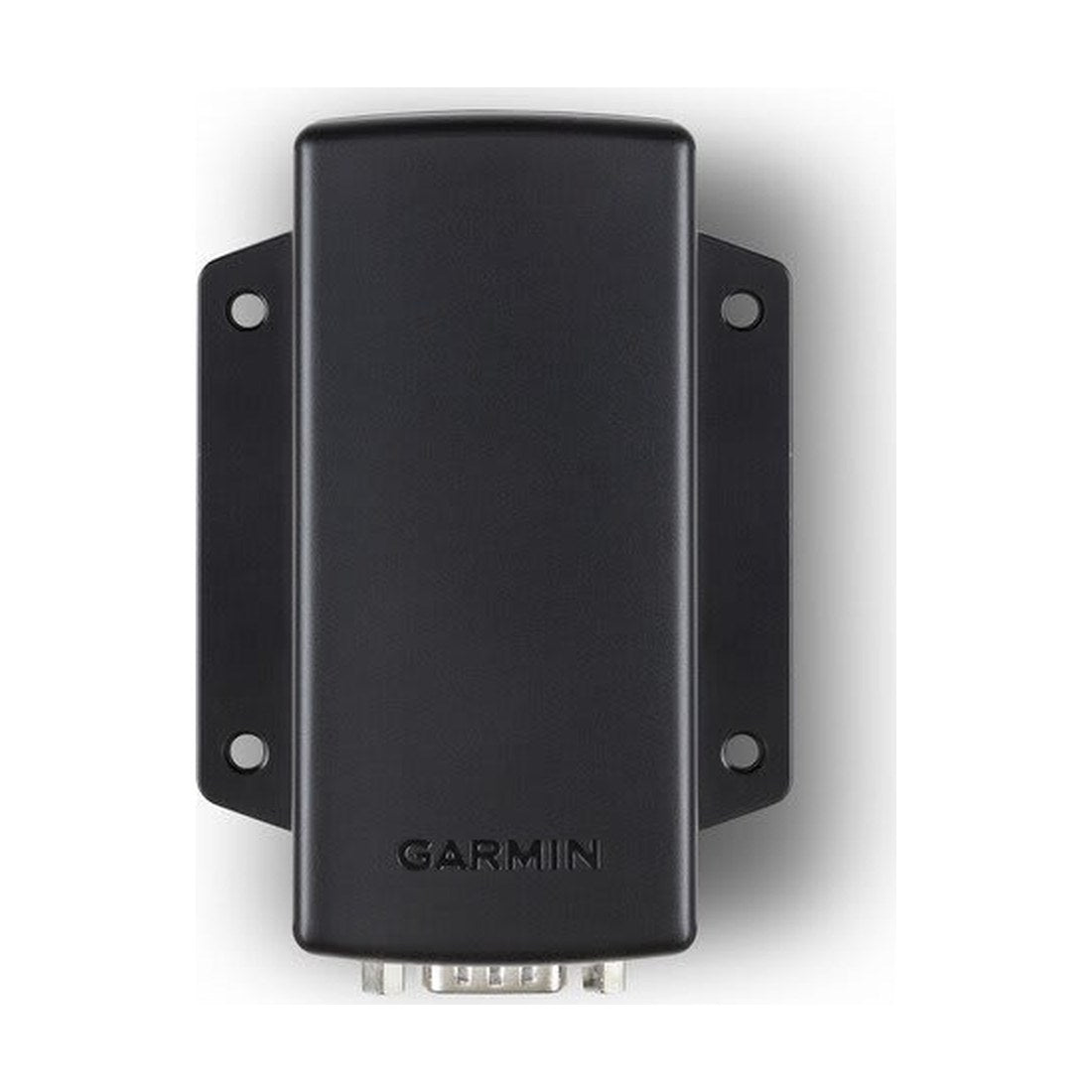

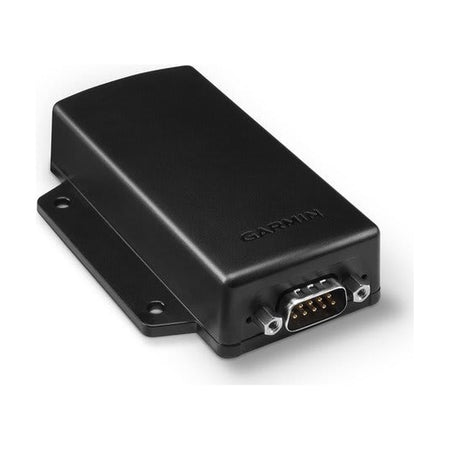

Garmin GMU 11 is a remote-mounted three-axis magnetometer that measures the Earth's magnetic field and supplies magnetic heading data to a Garmin attitude and heading reference system. P/N 010-01788-01 is the certified version listed in Garmin's Part 23 AML STC installation data for the G5, GI 275 and G3X Touch; the experimental G3X version has P/N 010-01788-00.

A 9-pin circular connector carries CAN bus, RS-232 and two aircraft power inputs. With the G5, the GMU 11 provides heading over the CAN bus and is required when a G5 is installed as DG/HSI. With the GI 275 it communicates with the internal ADAHRS over RS-232 and is limited to Class I and II aircraft up to 6,000 lb take-off weight. In a certified G3X Touch system it works with the GSU 25D ADAHRS.

Garmin prefers mounting in the wing, away from electric motors, ferromagnetic material and electrical conductors; the unit must not be mounted on an access panel and is levelled within 3.0° in pitch and roll. A US AML STC is not automatic EASA approval: a certified aircraft needs an approved modification covering the type, such as an EASA STC or a validated STC, and a Certificate of Release to Service. Fit depends on the aircraft type and the Garmin display system.

Technical specifications

Part number	010-01788-01	Current draw	0.1 A
Manufacturer	Garmin	Weight	73 g
For unit	G5 / GI 275 / G3X Touch	Mounting	Remote-mounted
Interfaces	CAN / RS-232	Eligibility	Certified aircraft
Supply voltage	14/28 V DC

Advanced Exchange ships a serviceable unit before the core is returned. Future Exchange begins after receipt and evaluation of the core and does not require a deposit. Repair retains the original serial number and starts with inspection and quotation.

Advanced Exchange

What happens: You receive a serviceable unit first. Your core goes back afterward.
Pay now: Full SV price plus core deposit.
Core: Return within 15 calendar days. Repairable (not BER) — deposit refunded. Missing or BER — deposit stays.
Time: Typically 2–3 weeks. Warranty 3 months. Released on EASA Form 1 or FAA 8130-3.

Future Exchange

What happens: You send the core first. After we confirm it is repairable, we ship the serviceable replacement.
Pay now: Net exchange price only. No deposit.
Core: Must be repairable (not BER). Same or superseded P/N, data plate on.
Time: Typically 3–4 weeks. Warranty 3 months. Released on EASA Form 1 or FAA 8130-3.

Repair

Serial: Yours stays. No swap unit — that is Exchange.
Shop: We inspect, quote, then repair. Accept the repair quote and the evaluation fee already paid is deducted. Decline or BER — unit returns as-is; evaluation fee stays.
Time: Typically 2–6 weeks after you approve the quote, parts depending. Warranty 3 months. Released on EASA Form 1 or FAA 8130-3.

Return the core in equivalent packaging, with removal data and a non-incident statement where you have them. Late, incomplete, or rejected-core terms are on the quote.
